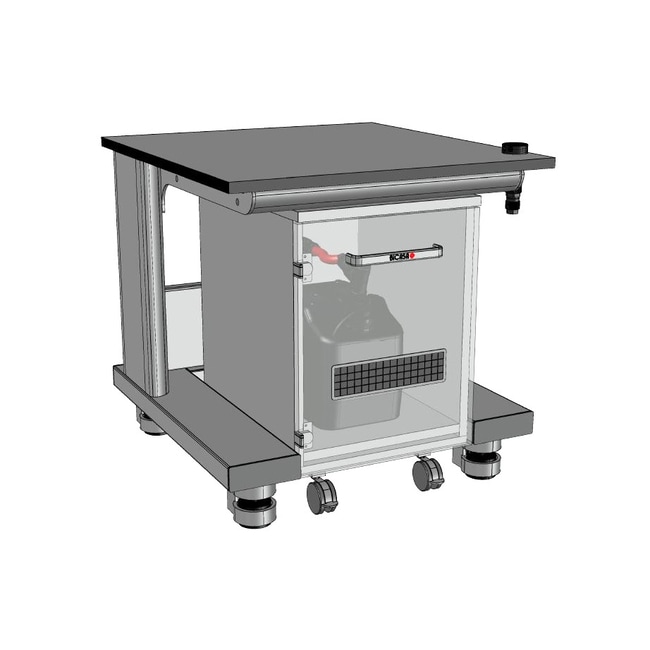

BICASA HPLC Rack - Model 1

• HPLC Rack
• Designed specifically to organise HPLC and UHPLC systems
• Aluminum drawn profiled pedestals with vertical slots
• Heavy steel sheet folded plinth
• High-capacity casters, all with single standing, locking and levelling device
• Worktop with heavy steel cantilever brackets and aluminum horizontal crossbar
• All parts finished with polyurethane powder coating Light Grey matt bonderized color
• HPL countertop, pastel grey color with black core

Undercounter Cabinet:

• Fire-retardant particleboard on casters
• 1 pull-out shelf lower position
• Left hand hinged door
• 400 x (500 + 20) x 630 mm H
• VENTILATED on the back part with frontal grid on the door

Safe Starter Set Multiport II:

• Material: PE-EX
• Temperature resistance: -50°C to +80°C
• Chemical resistance: ++ very good
• Conductibility: 106 Ohm

Safe Waste Tube:

• Material: PTFE-EX
• Temperature resistance: -200°C to +250°C
• Chemical resistance: ++ very good
• Conductibility: 106 Ohm

Safe Cabinet Mount GL25:

• Material: PE-EX
• Temperature resistance: -50°C to +80°C
• Chemical resistance: ++ very good
• Conductivity: 106 Ohm

Safe System Waste Caps LC:

• Material: PE-EX, PP
• Temperature resistance: -50°C to +80°C
• Chemical resistance : ++ very good
• Conductivity: 106 Ohm

Safe Venting Hose:

• Material: PE-EX
• Temperature resistance: -50°C to +80°C
• Chemical resistance: ++ very good
• Conductibility: 106 Ohm

Safe Canisters:

• With S60/61 thread (DIN60/61) for the collection of liquid waste
• Volume liters: 10 L
• Neck: Inclined
• Material: PE-HD-EX

Safe Mini-Display Table:

• Alarm box in plastic case.
• Front side with touch buttons and LED indicators to monitor the operation and the fill level of the connected sensors.
• Optical and acoustic main alarm starting when containers are full and stopping as soon as an empty container is confirmed.

Safe Signal Cables:

• To connect e.g. Waste Caps with electronic fill level control or sensors to a Safe Display to monitor the fill level.
• Cable length: 2 m
• Connection 1: Socket
• Connection 2: Plug
